Dexstar Steel Mini Mod Trailer Wheel – 16″ x 6″ Rim – 8 on 6-1/2 – Black

Description

Dexstar Trailer Tires and Wheels – AM20761B

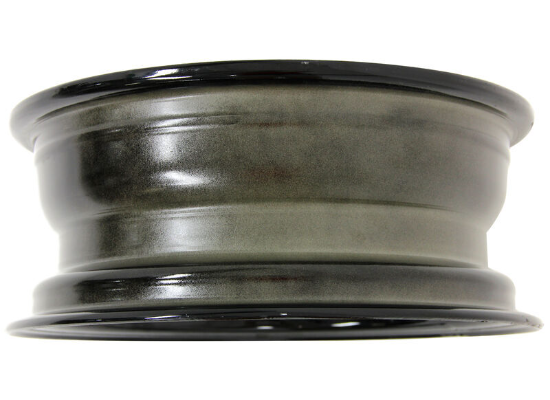

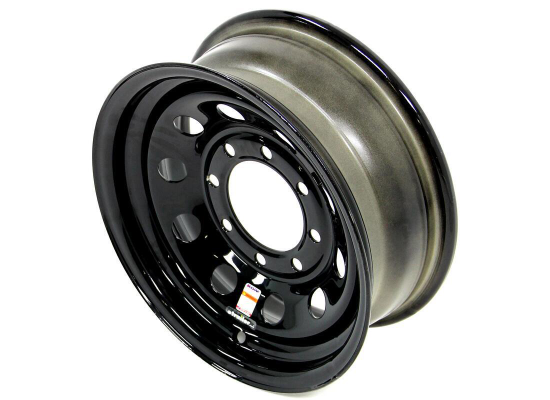

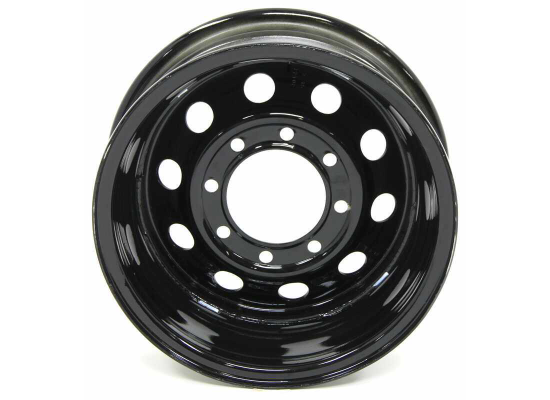

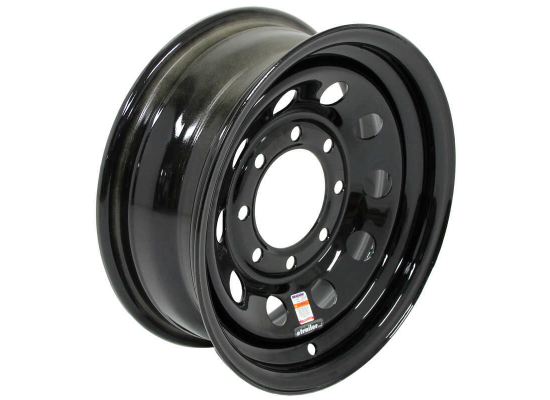

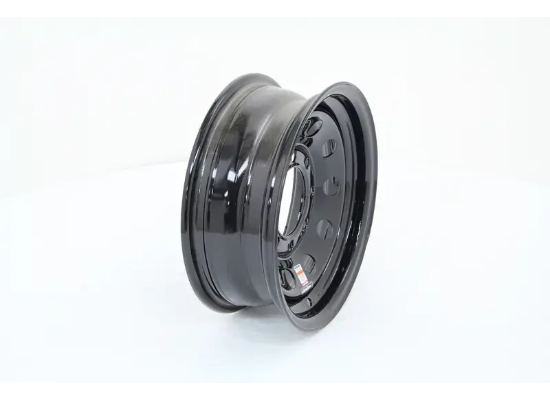

This 16″ x 6″ steel trailer wheel has a 8 on 6-1/2 bolt pattern and a 4.9″ pilot diameter. Rust resistant black powder coat finish.

Features:

• Steel wheel with modular design is sturdy and corrosion resistant
• 2-Step finishing process includes e-coat primer and black powder coat finish
• Wheel meets DOT standards
• Made in the USA

Specs:

• Rim dimensions: 16″ diameter x 6″ wide
• Bolt pattern: 8 on 6-1/2″
• Wheel bolt size: 1/2″-20 or 9/16″-18
• Capacity: 3,750 lbs
• Offset: 0
• Pilot diameter: 4.9″
• 2-Year limited warranty

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: “5 on 4-1/2″ means 5 bolt holes with 4-1/2” measured to a point halfway between the opposite bolt holes.)

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: “8 on 6-1/2″ means 8 bolt holes with 6-1/2” from the center of one hole to the center of another on the opposite side.)

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

• If D = 2-5/8″, then the bolt pattern is 5 on 4-1/2″
• If D = 2-3/4″, then the bolt pattern is 5 on 4-3/4″
• If D = 3″, then the bolt pattern is 5 on 5″
• If D = 3-1/4″, then the bolt pattern is 5 on 5-1/2″

20761B Dexstar 16×6 Steel Modular Rim – 8 on 6.5 – Black
