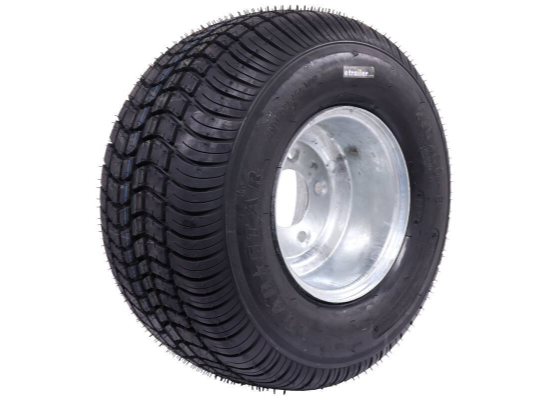

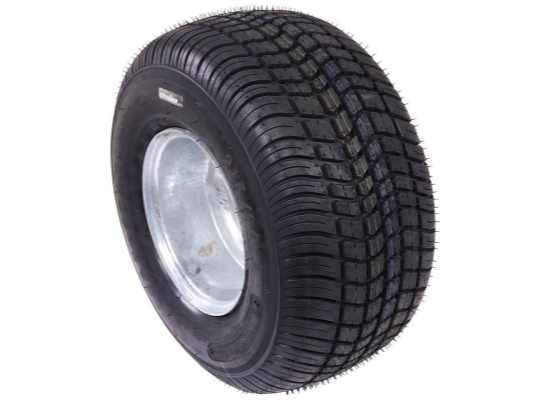

Kenda 215/60-8 Bias Trailer Tire with 8″ Galvanized Wheel – 5 on 4-1/2 – Load Range D

Description

Kenda Trailer Tires and Wheels – AM3H325

Bias tire has a ply rating of 8 and a 1,165-lb maximum load at 70 psi. The 8″ diameter x 7″ wide steel trailer wheel features a 5 on 4-1/2 bolt pattern and a corrosion-resistant galvanized finish.

Features:

• Kenda Loadstar trailer tire offers excellent handling
  • Bias cut provides superior stability
  • Modern tread design reduces rolling resistance for a smooth ride
• Steel wheel is galvanized for superior corrosion resistance
• Tire-and-wheel assembly meets Department of Transportation specifications

Specs:

• Rim dimensions: 8″ diameter x 7″ wide
• Bolt pattern: 5 on 4-1/2″
• Wheel capacity: 1165 lbs
• Wheel bolt size: 1/2″-20
• Offset: 0
• Pilot diameter: 2.8″
• Tire size: 215/60-8
  • Section width: 8.9″
  • Outer diameter (when inflated): 18.1″
• Tire capacity:
  • Load range: D
  • Ply rating: 8
  • Maximum load: 1,165 lbs at 70 psi
• Maximum speed: 81 mph (speed rating M)
• Warranty:
  • 5-Year on tire
  • Limited 2-year on wheel

Bias Tires vs. Radial Tires

Bias ply tires are designed for off-road or agricultural applications. They are built with thick, durable nylon cords that are positioned at a 30- to 45-degree angle to the direction of travel. The layers alternate in a crisscross pattern, making the sidewalls stiffer so that the entire tire is able to flex easily. As a result, the tire provides a smooth ride and improved handling when trailering on uneven surfaces.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: “5 on 4-1/2″ means 5 bolt holes with 4-1/2” measured to a point halfway between the opposite bolt holes.)

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: “8 on 6-1/2″ means 8 bolt holes with 6-1/2” from the center of one hole to the center of another on the opposite side.)

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

• If D = 2-5/8″, then the bolt pattern is 5 on 4-1/2″
• If D = 2-3/4″, then the bolt pattern is 5 on 4-3/4″
• If D = 3″, then the bolt pattern is 5 on 5″
• If D = 3-1/4″, then the bolt pattern is 5 on 5-1/2″
