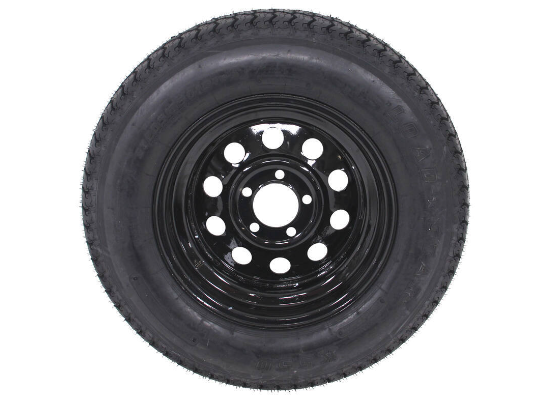

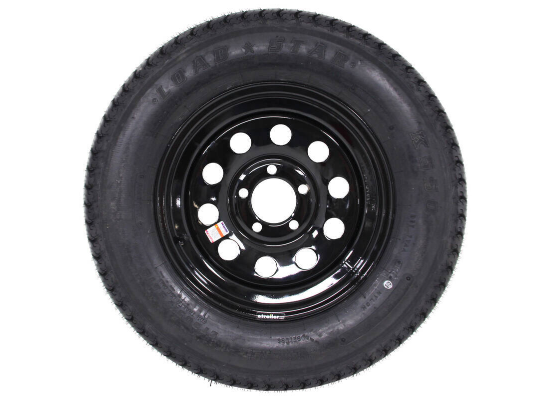

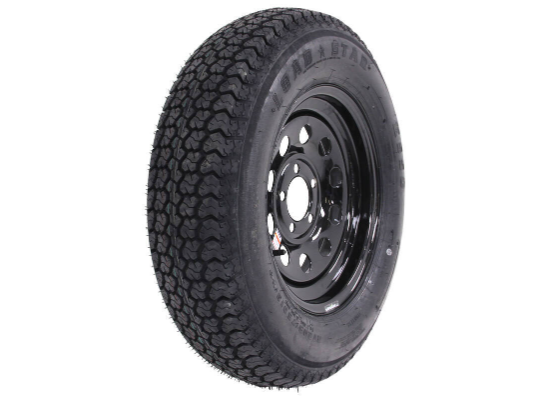

Loadstar ST205/75D15 Bias Trailer Tire w/ 15″ Black Mod Wheel – 5 on 4-1/2 – Load Range C

Description

Kenda Trailer Tires and Wheels – AM3S664DX

Bias tire has a ply rating of 6 and a 1,820-lb maximum load at 50 psi. The 15″ diameter x 5″ wide steel trailer wheel has a 5 on 4-1/2 bolt pattern and a corrosion-resistant black powder coat finish.

Features:

• Tire-and-wheel assembly is ideal for stock trailers, utility trailers, and campers
• Sturdy steel wheel with modular design by Dexstar
  • Black powder coat over e-coat primer for excellent corrosion resistance
• Loadstar bias ply tire

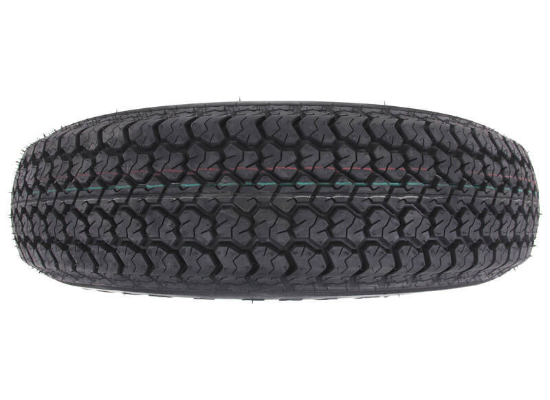

  • Flatter tread provides improved stability for excellent handling
  • Advanced rubber compound offers longer tread wear as well as low rolling resistance for a smooth ride
• Special trailer tire design
  • Couples the strength of a bias tire with the durability and stability of a radial tire
  • Created specifically for trailers and not intended for use on other vehicles
• Assembly meets DOT specifications
• Wheel is made in the USA

Specs:

• Rim dimensions: 15″ diameter x 5″ wide
• Bolt pattern: 5 on 4-1/2″
• Wheel bolt size: 1/2″-20
• Wheel capacity: 2,150 lbs
• Pilot diameter: 3.19″
• Offset: 0

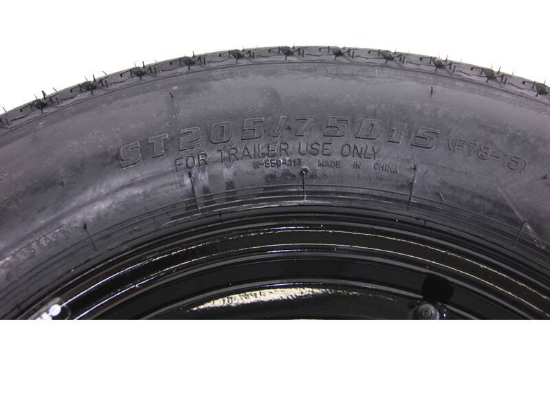

• Tire size: ST205/75D15
  • Section width: 7.7″
  • Outer diameter: 27.4″
• Tire capacity:
  • Load range: C
  • Ply rating: 6
  • Maximum load: 1,820 lbs at 50 psi
• Maximum speed: 81 mph (speed rating M)
• Warranty:
  • 5-Year on tire
  • Limited 1-year on wheel

Bias Tires vs. Radial Tires

Bias ply tires are designed for off-road or agricultural applications. They are built with thick, durable nylon cords that are positioned at a 30- to 45-degree angle to the direction of travel. The layers alternate in a crisscross pattern, making the sidewalls stiffer so that the entire tire is able to flex easily. As a result, the tire provides a smooth ride and improved handling when trailering on uneven surfaces.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: “5 on 4-1/2″ means 5 bolt holes with 4-1/2” measured to a point halfway between the opposite bolt holes.)

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: “8 on 6-1/2″ means 8 bolt holes with 6-1/2” from the center of one hole to the center of another on the opposite side.)

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

• If D = 2-5/8″, then the bolt pattern is 5 on 4-1/2″
• If D = 2-3/4″, then the bolt pattern is 5 on 4-3/4″
• If D = 3″, then the bolt pattern is 5 on 5″
• If D = 3-1/4″, then the bolt pattern is 5 on 5-1/2″
