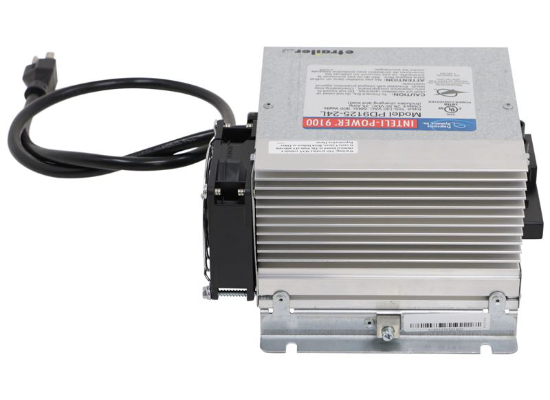

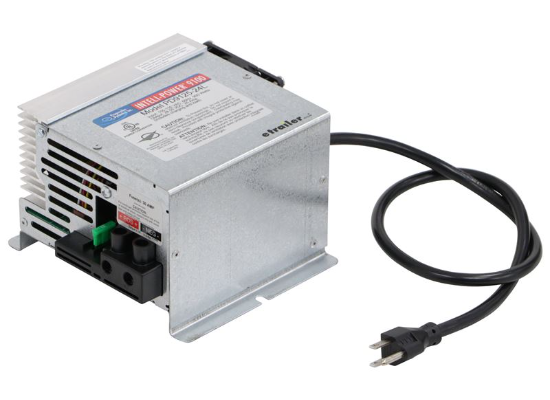

Progressive Dynamics 9100 Inteli-Power Lithium Converter – 24V – 25A

Description

Progressive Dynamics RV Power Converter – PD912524LV

Converter charger changes AC shore power to DC power to run 24V loads and charge your lithium RV batteries at the campground. Optimizes power output by utilizing a custom lithium charging profile that ensures a complete charge.

Features:

• Converter charger changes AC shore power to DC power to quickly charge your RV batteries
  • Provides continuous power to your DC breaker panel to run 24V loads
  • Works with lithium iron phosphate batteries
  • Perfect for buses, refrigerated delivery trucks, emergency vehicles, semi-trailer trucks with sleeper cabs, and solar energy
• High voltage output provides full, quick charge for lithium batteries
• Built-in safety features protect your RV’s electrical system
• Parallel and series wiring options – pair with another PD9100L series lithium converter charger
• Remote shutdown module lets you connect a mechanical switch or relay contacts (sold separately)
  • Turns the converter off after fully charging and balancing the battery
• UL listed
• Made in the USA

Specs:

• Application: 24V battery systems
• Rated power output: 710 watts
• Amperage output: 25 amps
• Voltage:
  • Input: 105 – 130 VAC
  • Output: 28.55 VDC
• Cable length: 30″
• Dimensions: 8-1/4″ long x 7-1/4″ wide x 4-11/16″ deep
• Weight: 4.5 lbs
• 2-Year limited warranty

Note: Charge Wizard not compatible with lithium converter chargers.

This converter charger converts AC shore power into DC power and charges your battery bank. The converter uses a high voltage output to provide the proper charging profile for lithium batteries. If your RV already has a stock converter charger, it will need to be removed to ensure this unit operates properly.

Designed for Lithium Batteries

Built for lithium batteries, this unit uses a higher output voltage than a typical converter charger, which provides a fast, complete charge. The charger also extends battery life since it utilizes the appropriate charging profile. Additionally, it’s compatible with your battery’s internal Battery Management System (BMS), which helps manage charging by monitoring the battery state and balancing cell voltage.

Parallel and Series Capability

If your battery bank requires a higher amperage or voltage to charge properly, you can connect identical converter chargers together to accommodate your setup. With parallel wiring, you can increase the charging current which is useful for high-capacity battery banks. Conversely, you can wire them in series, which increases the voltage so you can charge 24V, 36V, or 48V systems.

Safety Features

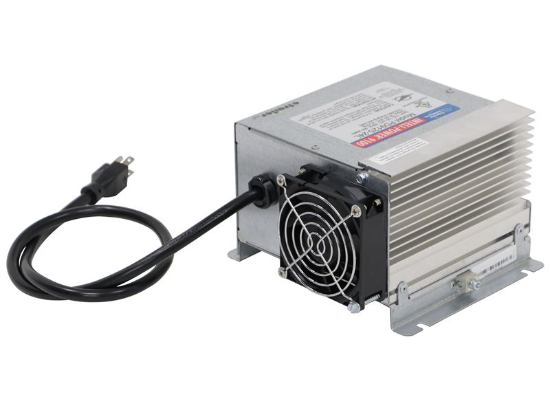

The system includes a number of safety features. It has a reverse polarity protection that will protect the converter if the battery is hooked up incorrectly. It has short circuit protection as well, which limits the current and reduces the output until the short has been fixed. Additionally, the converter will shut down if there is excessive voltage. The built-in cooling fan also removes excess heat from the unit and only operates during high loads.

How It Installs

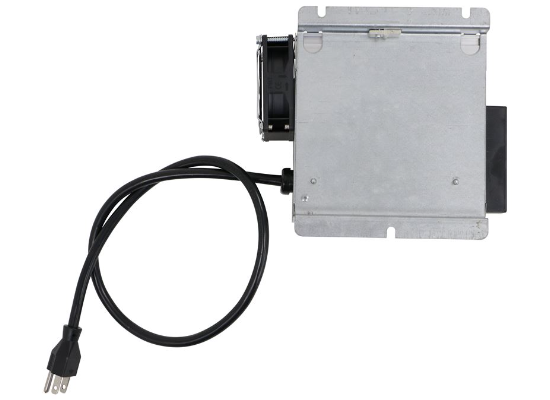

The converter mounts horizontally inside your RV in a dry location with ventilation. However, as long as the unit has sufficient ventilation, it can also be mounted vertically. The mounting hardware is not included.

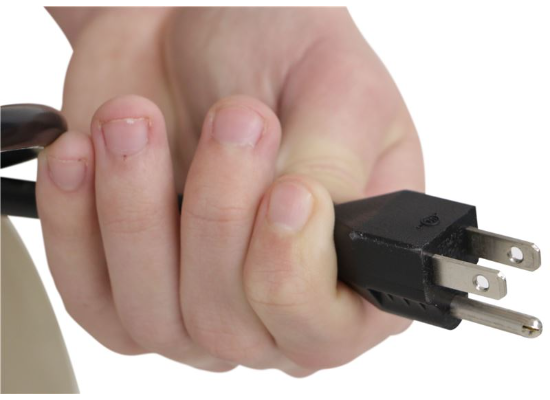

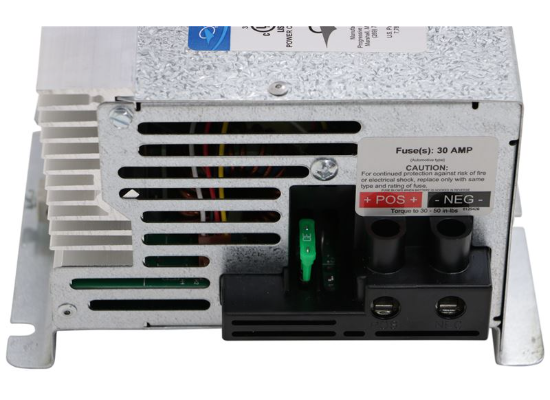

The DC output terminals wire to the battery bank. The AC in cord plugs into a 120V 3-wire grounded outlet.

PD9125-24LV Progressive Dynamics PD9100L Series Battery Converter Charger with BMS – Lithium – 24 Volts – 25 Amps
